Model SER/SUR: Vortex Type, 4-pole Series

SUBMERSIBLE PUMPS FOR SUMPS　　-For Solid Sewage-

Model SER・SUR For Solid Sewage

Optimum use for septic tanks, sludge and stock farming
　

■Even large solid and string matters can be pumped up smoothly due to its specially shaped impeller.

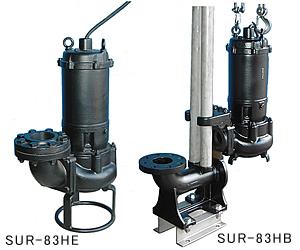

■Elbow assembly can also be mounted.

■Auto-level control contained type also available.(3.7kW and smaller)

Model Discharge No. of Poles Motor Output Rated Head Rated Flow Solid Handing Power Cable Weight Free Standing Ebow Assembly mm inch kW HP m ft m3/min l/s mm mm2×Core×Length(m) kg SUR-505HE SUR-505HB1 50/65* 2 4 0.4 1/2 4 13 0.12 2.0 50 1.25×4×8 26 SUR-505LE SUR-505LB1 2.5 　 0.22 　 SUR-51HE SUR-51HB1 4 0.75 1 6 20 0.15(0.2) 2.5(3.3) 50 1.25×4×8 31 SUR-51ME SUR-51MB1 4 13 0.3 5.0 SUR-51LE SUR-51LB1 2 　 0.35(0.4) 5.8(6.7) SUR5-82HE SUR5-82HB 80/65* 3 4 1.5 2 7.5 25 0.2 3.3 65 2.0×4×8 66 SUR5-82ME SUR5-82MB 5.5 　 0.32(0.35) 　 SUR5-82LE SUR5-82LB 3 　 0.5 8.3 SUR5-83HE SUR5-83HB 4 2.2 3 9 　 0.2 3.3 65 2.0×4×8 70 SUR5-83ME SUR5-83MB 7 23 0.45 　 SUR5-83LE SUR5-83LB 4 13 0.75 12.5 SUR5-85HE SUR5-85HB 4 3.7 5 14 46 0.2 3.3 65 2.0×4×8 70 SUR5-85ME SUR5-85MB 9 　 0.6 10.0 SUR5-85LE SUR5-85LB 5 16 1.0 16.7 SER5-108E SER5-108B 100 4 4 5.5 8 8 26 1.0 16.7 75 3.5×4×8 120 SER5-1010E SER5-1010B 4 7.5 10 12 39 1.0 16.7 75 5.5×4×8 140 SER5-1015ED SER5-1015DB 4 11 15 15 49 1.5 25.0 75 5.5×3,4×8 180

　
・Power Supply : Voltage between 200V to 550V, 3-Phase, 50Hz or 60Hz.
・Discharge is flanged type with companion flange as standard.
・A motor protector (bimettalic auto cut) is installed for motors under 7.5kW.
・Mark * shows availability of discharge sizes, on request.
・Figures in （　） of column "Rated Flow" for 50Hz operation.
・Weight indicates the values of free-standing type.
・Power cable : 2PNCT(except 1.25mm2), VCT(1.25mm2 only)
