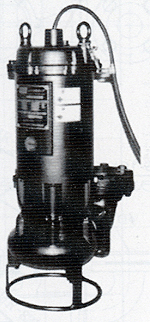

Model SUV: Vortex Type, 2-pole Series

SUBMERSIBLE PUMPS FOR SUMPS　　-For Solid Sewage-

Model SUV For Solid Sewage (2-Pole Motor)

Optimum use for manhole pumps, septic tanks, and sludge
　

■Even large solid and string matters can be pumped up smoothly due to its specially shaped impeller.

■Elbow assembly can also be mounted.

■Auto-level control contained type also available.(3.7kW and smaller)

Model Discharge No. of Poles Motor Output Rated Head Rated Flow Solid Handing Power Cable Weight Free Standing Ebow Assembly mm inch kW HP m ft m3/min l/s mm mm2×Core×Length(m) kg SUV-505E SUV-505B1 50/65* 2 2 0.5 1/2 6.1 　 0.06 　 50 1.25×4×10 26 SUV-51E SUV-51B1 2 0.75 1 9.0 　 0.1 　 28 SUV5-82E SUV5-82BH 80/65* 3 2 1.5 2 10.0 33 0.2 3.3 65 2.0×4×8 52 SUV5-83E SUV5-83BH 2 2.2 3 14.5 　 0.2 3.3 55 SUV5-85E SUV5-85BH 2 3.7 5 18.5 　 0.3 5.0 70

　
・A motor protector (bimettalic auto cut) is installed for motors.
・Mark * shows availability of discharge sizes, on request.
・Weight indicates the values of free-standing type.
・Power cable : 2PNCT(except 1.25mm2), VCT(1.25mm2 only)
