Model CSU: 4-pole Series

SUBMERSIBLE PUMPS FOR SUMPS　 -For Corrosion-resistant Stainless Steel Type-

Model CSU Stainless Steel Construction for Corrosive Waste Liquid and Sewage

Optimum use for corrosion-resistance in applications requiring stainless steel parts
　

■All parts that come in contact with liquids are mode of stainless steel(SUS316) and casting(SCS14).

■Corrosion-resistant mechanical seal.

■Built-in motor protector.

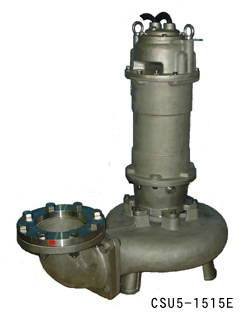

Model Discharge No. of Poles Motor Output Rated Head Rated Flow Solid Handing Power Cable Weight Free Standing Ebow Assembly mm inch kW HP m ft m3/min l/s mm mm2×Core×Length(m) kg CSU-51E CSU-51B1 50 2 4 0.75 1 8 26 0.21 3.5 20 1.25×4×6 42 CSU5-82E CSU5-82B 80 3 4 1.5 2 8 26 0.55 9.2 20 2.0×4×8 77 CSU5-83E CSU5-83B 4 2.2 3 10 33 0.6 10.0 22 2.0×4×8 92 CSU5-85E CSU5-85B 4 3.7 5 10 33 1.0 16.7 29 2.0×4×8 104 CSU5-108E CSU5-108B 100 4 4 5.5 8 10 33 1.5 25.0 34 3.5×4×8 130 CSU5-1010E CSU5-1010B 4 7.5 10 15 49 1.5 25.0 34 5.5×4×8 155 CSU5-1510E CSU5-1510B 150 6 4 7.5 10 10 33 2.5 　 60 5.5×4×8 165 CSU5-1515ED CSU5-1515DB 4 11 15 15 49 2.5 　 44 5.5×3,4×8 195

　
・A motor protector (bimettalic auto cut) is installed for motors under 7.5kW.
・EIM can provide a water penetration detector (above 5.5kW) on request.
・Weight indicates the values of free-standing type.
・Power cable : 2PNCT(except 1.25mm2), VCT(1.25mm2 only)
