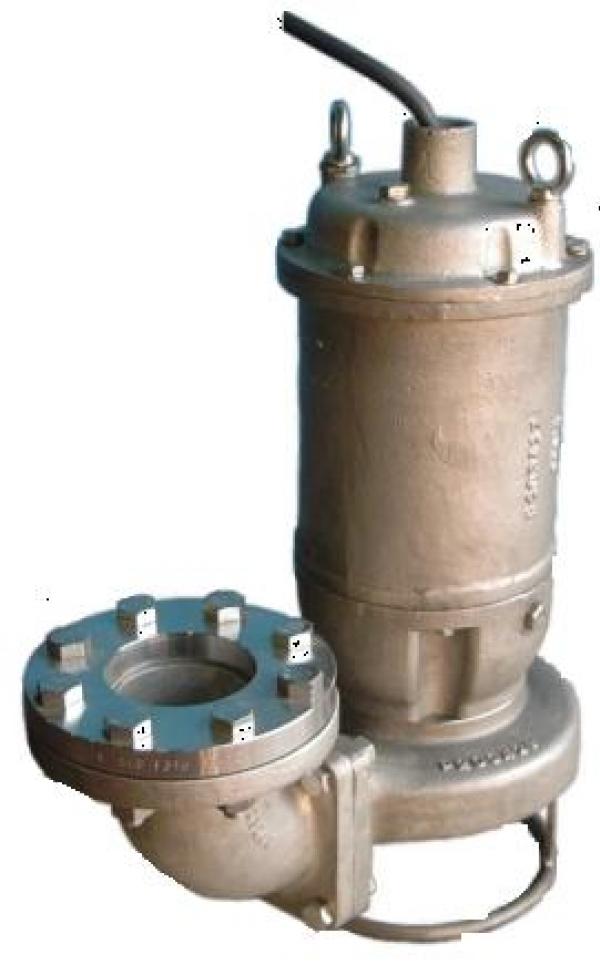

Model SE: 2-pole Series

Model SE For Waste Water Effluent, Small Lightweight Type

Optimum use in general applications and miscellaneous waste water
　

■Free from clogging by sewage and dust due to its non-clog impeller

■Elbow assembly can also be mounted.

■Auto-level control contained type also available.(3.7kW and smaller)

Model Discharge No. of Poles Motor Output Rated Head Rated Flow Solid Handing Power Cable Weight Free Standing Ebow Assembly mm inch   kW HP m ft m3/min l/s mm mm2×Core×Length(m) kg SE-400E SE-400B1 50/65* 2 2 0.4 1/2 6 20 0.16 2.7 12 1.25×3×6 23 SE-400G 16 SE-503E SE-503B1 2 0.25 1/3 5 16 0.15 2.5 12 1.25×4×6 23 SE-503G 16 SE-505E SE-505B1 50/65* 2 2 0.4 1/2 6 20 0.2 3.3 12 1.25×4×10 24 SE-505G 17 SE-51E SE-51B1 2 0.75 1 8 26 0.3 5.0 16 1.25×4×10 25 SE-51G 17 SE5-82HE SE5-82HBH 2 1.5 2 15 49 0.25 4.2 13 2.0×4×8 53 SE5-82LE SE5-82LBH 8 26 0.5(0.55) 8.3(9.2) 16 53 SE5-83HE SE5-83HBH 80/65* 3 2 2.2 3 20 66 0.25 4.2 15 2.0×4×8 58 SE5-83LE SE5-83LBH 8 26 0.75(0.8) 12.5(13.0) 34 58 SE5-85HE SE5-85HBH 2 3.7 5 20 66 0.5 8.3 18 2.0×4×8 70 SE5-85LE SE5-85LBH 10 33 1.0(1.1) 16.7(18.0) 32 70 SE5-88E SE5-88BH 2 5.5 8 30 98 0.3 5.0 19 3.5×4×8 105 SE5-810E SE5-810BH 80/65* 3 2 7.5 10 35 115 0.4 6.7 20 5.5×4×8 125 SE5-815ED SE5-815DBH 2 11 15 40 131 0.5 8.3 20 5.5×3,4×8 140 SE5-108E SE5-108E 2 5.5 8 12 39 1.3 21.7 33 3.5×4×8 115 SE5-1010E SE5-1010E 100 4 2 7.5 10 15 49 1.5 25.0 33 5.5×4×8 135 SE5-1015ED SE5-1015ED 2 11 15 15 49 1.8 30.0 36 5.5×3,4×8 150

　
・Power Supply : Voltage between 200V to 550V, 3-Phase, 50Hz or 60Hz. (SE-400 only: 1-Phase, 100V to 240V, 50Hz or 60Hz.)
・Starting Method : Direct-on-Line Start
・A motor protector (bimettalic auto cut) is installed for motors under 7.5kW.
・Figures in （　） of column "Rated Flow" : for 50Hz operation.
・Mark * shows availability of discharge sizes, on request.
・Weight indicates the values of free-standing type.
・Power cable : 2PNCT(except 1.25mm2), VCT(1.25mm2 only)
